NCE | Paradise
Aquaponics System
General Description
The NCE | Paradise Aquaponics System is designed with focus on aesthetics rather than production yield for moderate or cold regions.
The aquaculture section consists of four separate circuits housed in concrete tanks. Each circuit consists of 2 grow-out tanks including 2 juvenile nets, one solids filters, and one bio filter. The water is pumped directly into the hydroponic section, where it flows through the plant beds and finally back into the bio filter.
Technical Details

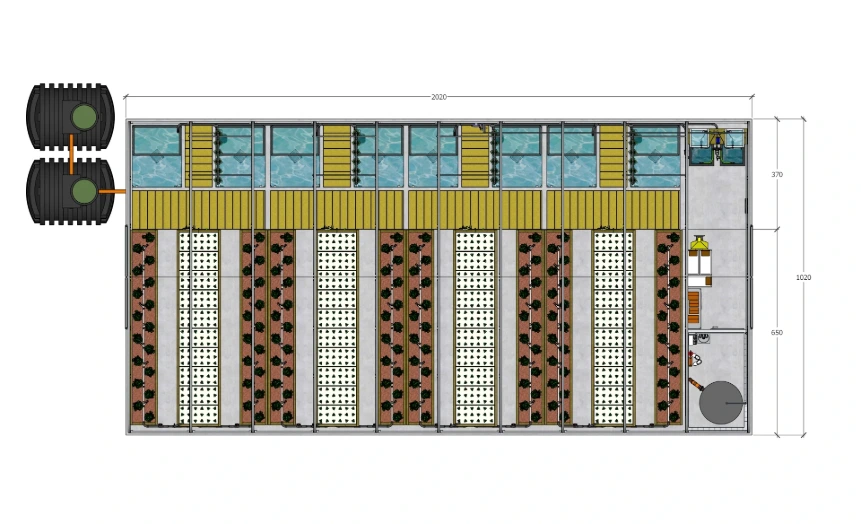

Space Requirement:
Aquaculture section: 20,2 m x 3,7 m
Hydroculture section: 20,2 m x 6,5 m
Total area: 20,2 m x 10,2 m
Hydroculture section: 20,2 m x 6,5 m
Total area: 20,2 m x 10,2 m
The size of the hydroculture gives you an annual production capacity of 14,400 salads
(10 month production). It can only be adjust by using a wider greenhouse.
(10 month production). It can only be adjust by using a wider greenhouse.
Production Capacity Fish:

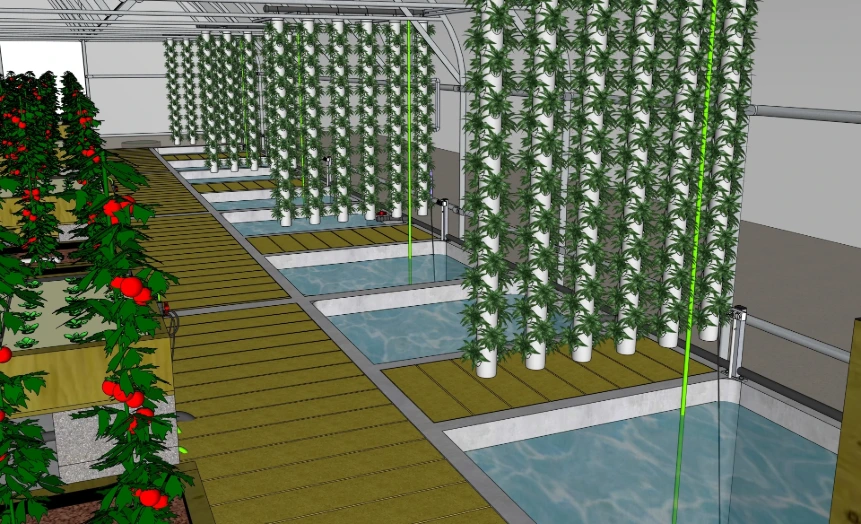

The aquaculture section of the system consists of optimized filter tanks,
8 growout tanks (total 28,1 m³ water) and
8 suspended juvenile nets.
8 growout tanks (total 28,1 m³ water) and
8 suspended juvenile nets.
Depending on the fish you want to produce, the maximum production capacity varies considerably:
- African Catfish (280 kg/m³ density): 21,5 to p.a.
- Tilapia (100 kg/m³ density): 6,2 to p.a.
Construction Method:
The filter system and the fish tanks are made of concrete and typically are sunk into the ground. The juvenile net float in the growout tanks. The greenhouse is typically made of a steel structure with isolated foil. As an alternative glass greenhouse can be used.

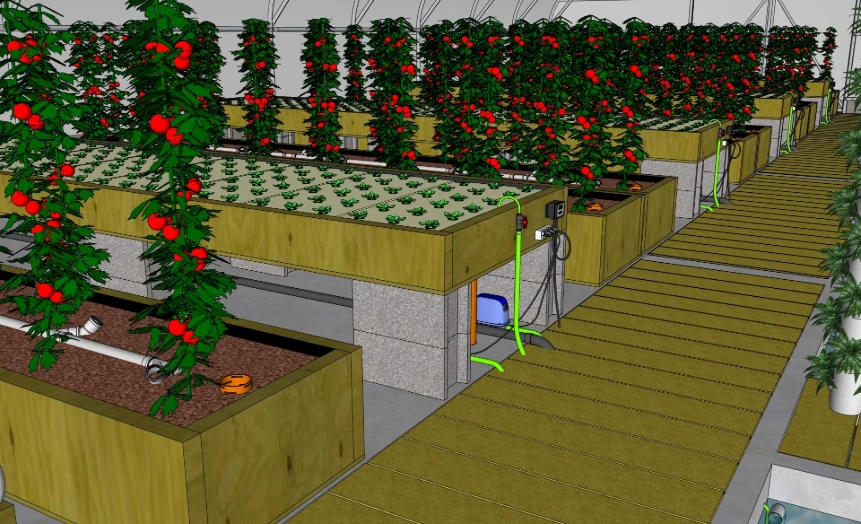

The floor of the hydroculture section can be made of concrete or less solid materials like gravel or laying plates. The hydroponic grow beds are usually made of wood and fitted with liner bags.
Material Costs:
The material costs to build this system can be estimated between 250,000 and 300,000 Euros based on prices achievable in middle Europe.
As many customers build the system themselves, labor is not included in this cost estimation.
Climate / Temperature Conditions:
The system is designed for the usage in areas with moderate or cold climate.
Our "beauty" is an aquaponics system for customers which are willing to accept a slightly lower production output in favor of a nice system setup. The heating is not part of the implementation documentation.
Our "beauty" is an aquaponics system for customers which are willing to accept a slightly lower production output in favor of a nice system setup. The heating is not part of the implementation documentation.
Annual system input/output:
Fingerlings: 11.388 pcs.
Fish feed: 19.500 kg (for African Catfish)
Freshwater: 662m³
Electricity: 15,2 MWh (excl. heating)
Sludge water: 596 m³
Additives: Small amounts for PH management
Fish feed: 19.500 kg (for African Catfish)
Freshwater: 662m³
Electricity: 15,2 MWh (excl. heating)
Sludge water: 596 m³
Additives: Small amounts for PH management
